034 Motorsport - Adjustable Solid Rear Sway Bar - Volkswagen Golf MK7R/MK8R & Audi 8V S3/TT/TTS - 034-402-1006
034 Motorsport - Adjustable Solid Rear Sway Bar - Volkswagen Golf MK7R/MK8R & Audi 8V S3/TT/TTS - 034-402-1006
Couldn't load pickup availability
034 Motorsport Australia - Adjustable Solid Rear Sway Bar - Volkswagen Golf MK7R/MK8R & Audi 8V S3/TT/TTS - 034-402-1006.
* Fits all MQB AWD and MQV EVO AWD vehicles such as MK7R, MK8R, 8V S3, 8Y S3, TT, TTS etc
Please note the sway bar design has recently been revised in the bend to help with clearance and fitment.
034 Motorsport is proud to offer the ultimate rear sway bar upgrade for the MK7/MK8 Volkswagen Golf R, 8V Audi A3/S3 Quattro & MK3 Audi TT/TTS!
The 034 Motorsport Adjustable Solid Rear Sway Bar is made from a single piece of high-quality, 22.2mm thick spring steel for maximum rigidity, and is designed to combat understeer while reducing body roll under hard cornering.
This product was tested thoroughly on the street and track on 034Motorsport's 2016 Audi S3 Development Vehicle and multiple enthusiast-owned MQB Audi/Volkswagen vehicles before release. The 034Motorsport Adjustable Solid Rear Sway Bar substantially reduces understeer and body roll on 8V Audi A3/S3 Quattro, MK7 Audi TT/TTS Quattro & MK7 Volkswagen Golf R vehicles without compromising comfort on the street.
In addition, the 034Motorsport MQB Rear Sway Bar is engineered to be used effectively with the stock front sway bar. No upgrade in the front is required. The addition of a stiffer front bar can positively affect turn-in feel, but ultimately worsens the platform's tendency to understeer. With the stock front sway bar and upgraded 034 Motorsport Solid Rear Sway Bar, body roll is virtually eliminated while turn in and off throttle oversteer are greatly improved.
Features:
- 22.2mm Diameter
- Solid Spring Steel Construction
- One-Piece Design
- 2-Way Adjustable

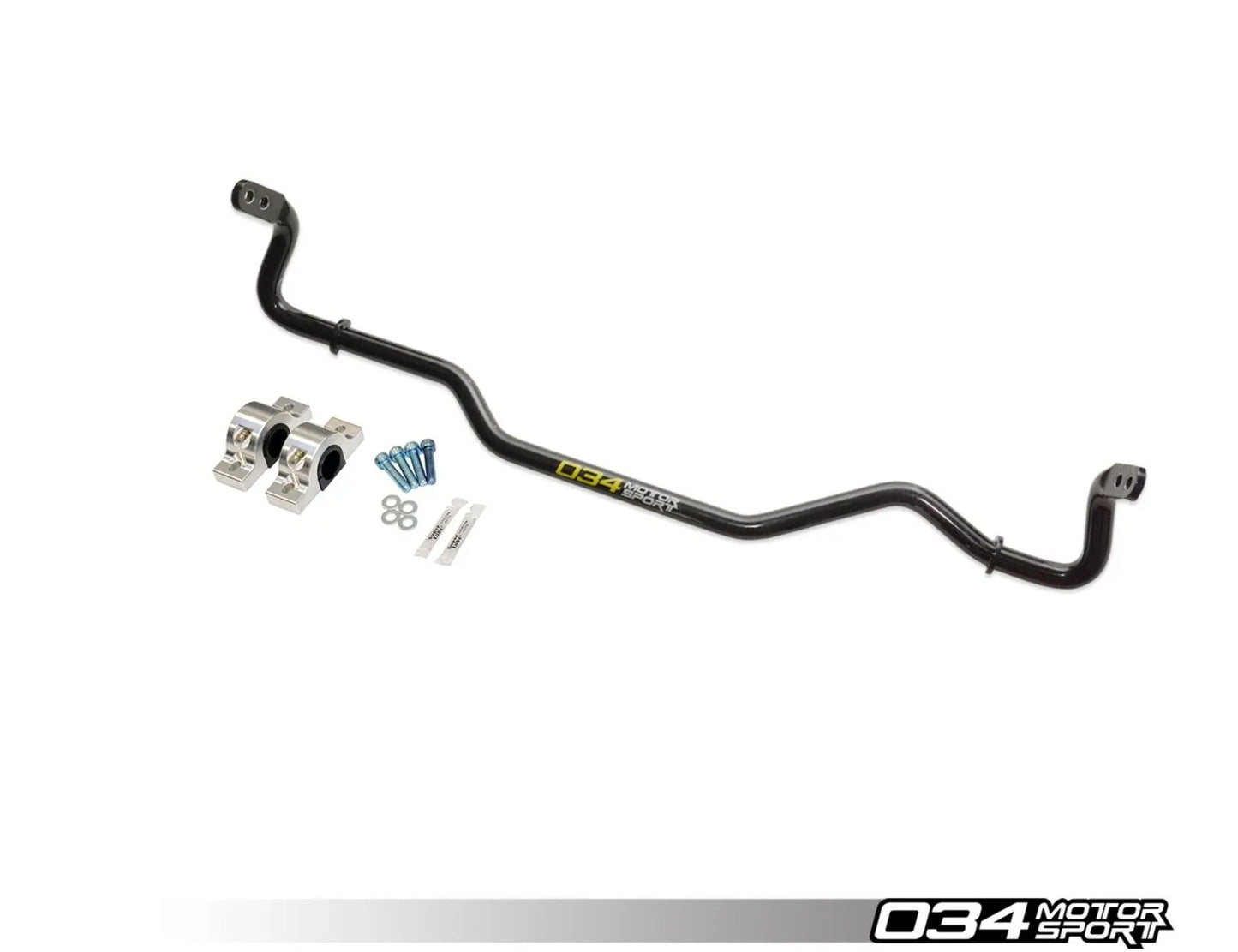

What's Included:
- 034Motorsport 8V Audi A3/S3 Quattro, MkIII TT/TTS Quattro, & Volkswagen Golf R (MQB) Adjustable Solid Rear Sway Bar
- Polyurethane Sway Bar Bushings
- Billet Aluminum Sway Bar Brackets with Integrated Zerk Fittings
- Sway Bar Bracket Installation Hardware Kit
Fitment:
| Make | Model | Years | Chassis | Engine |
|---|---|---|---|---|
| Audi | A3 | 2013-2016 | 8V | 1.8 TFSI |
| Audi | A3 | 2013-2016 | 8V | 2.0 TDI |
| Audi | A3 | 2013-2020 | 8V/8V.5 | 2.0 TFSI |
| Audi | S3 | 2013-2020 | 8V/8V.5 | 2.0 TFSI |
| Audi | S3 | 2022-Present | 8Y | 2.0 TFSI |
| Audi | TT | 2016-2020 | 8S | 2.0T Gen 3 |
| Audi | TTS | 2016-2020 | 8S | 2.0T Gen 3 |
| Cupra (Seat) | Formentor | 2021-Present | Mk1 | 2.0T/2.5T |
| Seat | Ateca | 2016-2021 | Mk1 | 2.0T |
| Seat | Leon | 2012-2020 | MQB | 1.8T/2.0T |
| Seat | Tarraco | 2019-2021 | Mk1 | 2.0T |
| Skoda | Kodiaq | 2016-Present | Mk1 | 2.0T |
| Skoda | Octavia | 2013-2020 | Mk3 | 1.8T/2.0T |
| Skoda | Superb | 2015-2020 | B8 | 1.8T/2.0T |
| VW | Arteon | 2019-2021 | I | 2.0T Gen3 (AWD Only) |
| VW | Arteon | 2022-2024 | I.5 | 2.0T Gen4 (AWD Only) |
| VW | Arteon R | 2020-Present | I.5 | 2.0T Gen4 (NaR Only) |
| VW | Golf SportWagen | 2013-2020 | MkV7/MkV7.5 | 1.8T Gen3 |
| VW | Golf Alltrack | 2013-2020 | MkV7/MkV7.5 | 1.8T Gen3 |
| VW | Golf R | 2013-2019 | Mk7/Mk7.5 | 2.0 TSI Gen 3 |
| VW | Golf R | 2021-Present | Mk8 | 2.0T Gen4 |
| VW | Tiguan | 2018-Present | Mk2 | 2.0T Gen3 |
Sway Bar Rate Data:
- 034Motorsport (Soft) - 37% Rate Increase vs. Factory Audi S3 (22mm) Hollow Rear Sway Bar
- 034Motorsport (Stiff) - 52% Rate Increase vs. Factory Audi S3 (22mm) Hollow Rear Sway Bar
Installation Instructions:
Please Note: We recommend upgrading to our MQB adjustable sway bar end links to gain the maximum performance benefit when installing this rear sway bar upgrade.
